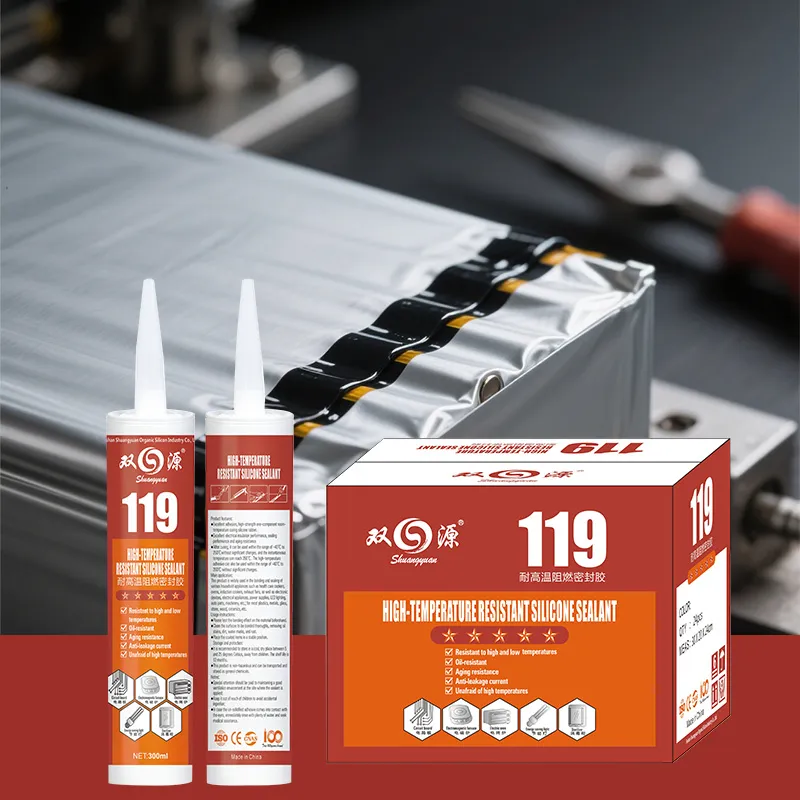

SY-119
Flame-retardant and High-temperature-resistant Sealant
Key Features
Why Choose SY-119
- High temperature stability (core feature), long-term high temperature resistance, and resistance to thermal shock
- Excellent filling properties with good sealing and bonding performance. It can bond various substrates such as metals (steel, aluminum), ceramics, glass, and high-temperature plastics, and the bonding strength does not decrease under high temperatures.
- Chemical resistance: Some products can resist erosion from acids, alkalis, oil stains, organic solvents, and high-temperature steam.
- Aging resistance: It is not prone to oxidation or cracking under high temperatures, ultraviolet rays, and humid conditions.
Application

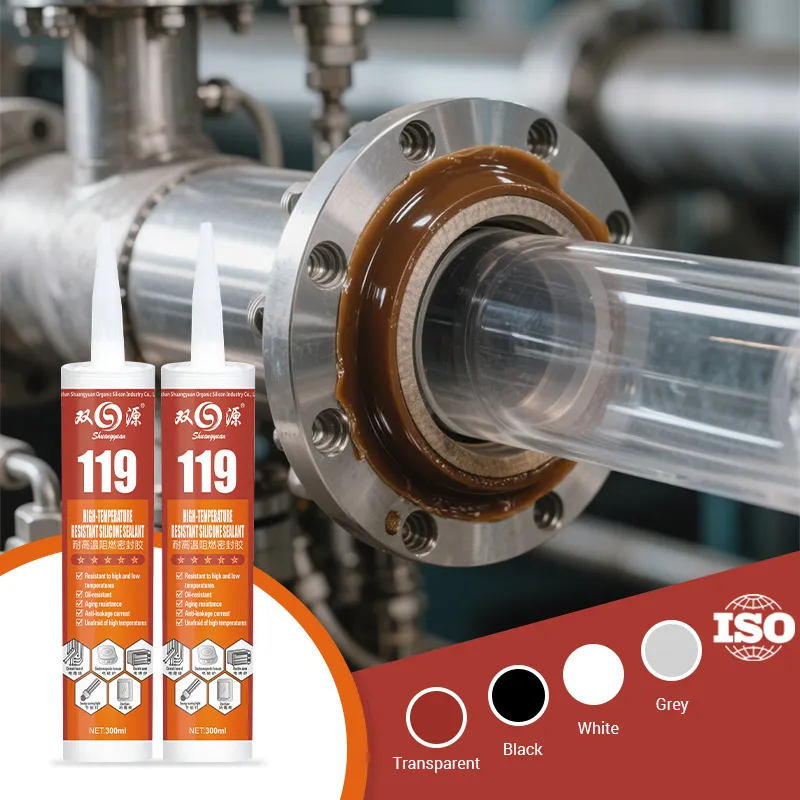

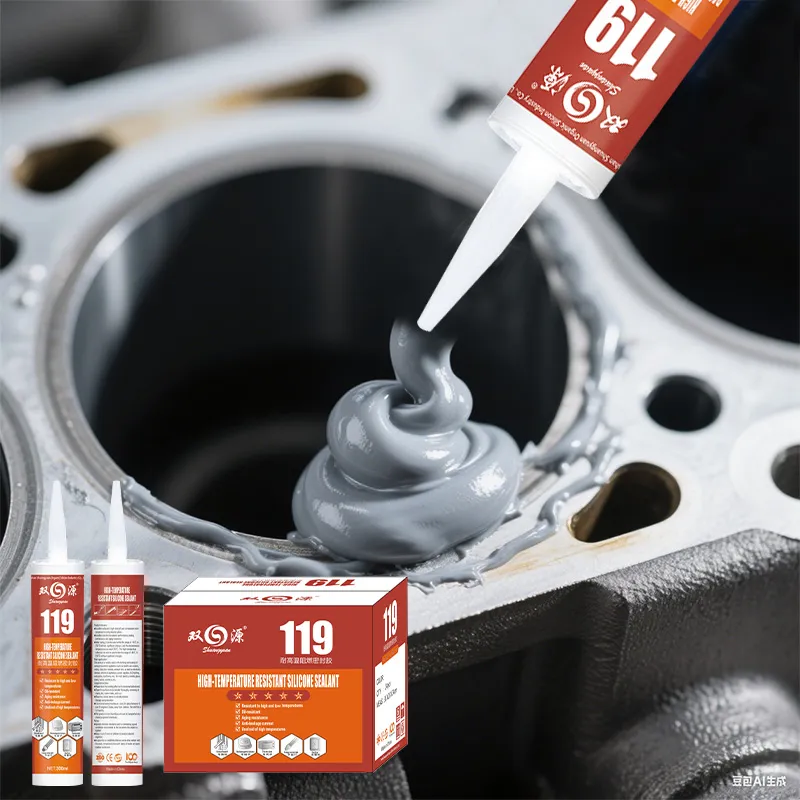

Oven gasket, high-temperature steam pipeline, hot oil pipeline flange connection seal, as well as valve core and valve body seal of high-temperature valves, boiler water-cooled wall, superheater seal, steam turbine cylinder joint seal, cylinder head and cylinder body joint, exhaust manifold seal, microwave oven cavity seal, etc. Product
Quick Specs
- Appearance
- The cream-like substance is fineand even, and comes in colors such as red, bright black and porcelain white.
- Tack-free time (23 °C; 50 % RH)
- 5 ~ 15 min
- Density
- 1.4±0.1 g/cm3
- Hardness
- ≥20
- Ultimate elongation
- ≥300%
Specifications
Technical Parameters
| Parameter | Value |
|---|---|
| Appearance | The cream-like substance is fineand even, and comes in colors such as red, bright black and porcelain white. |
| Tack-free time (23 °C; 50 % RH) | 5 ~ 15 min |
| Density | 1.4±0.1 g/cm3 |
| Hardness | ≥20 |
| Ultimate elongation | ≥300% |
| Tensile strength | ≥2.5MPa |
| Construction temperature | -5 ~ 40℃ |
| Temperature tolerance range | -50℃ ~ 320℃ |
| Cure rate / curing speed (23 °C; 50 % RH) | ≥1.2 mm/24h |
| Colour | Black, White, Grey, Red |
Data Sheets
Specification Documents
Solutions
Related Solutions
Explore how SY-119 fits into our comprehensive sealant solutions for construction and industrial applications.
Resources
Technical Articles
Guides and insights related to flame-retardant and high-temperature-resistant sealant applications.
Silicone sealant manufacturer note: structural sealant warranty terms are typically defined by the project contract/specs, while product warranty follows Shuangyuan’s 3-year policy and TDS (contact us for selection support such as SY-9900 where applicable).
A simple way to distinguish bulging vs bubbling and assess whether the issue is more likely related to the sealant or the substrate, based on surface appearance and cross-section inspection.
Silicone sealant manufacturer tip: select the right sealant by matching the cure system and substrate compatibility, then confirm performance requirements against the product TDS (contact us for selection or OEM support if needed).
Interested in SY-119?
Get custom quotes, samples, or technical support from our team.
